AS 150/3
AS 150/3 is an assembly system for the CSM 150 familly of capacitors.

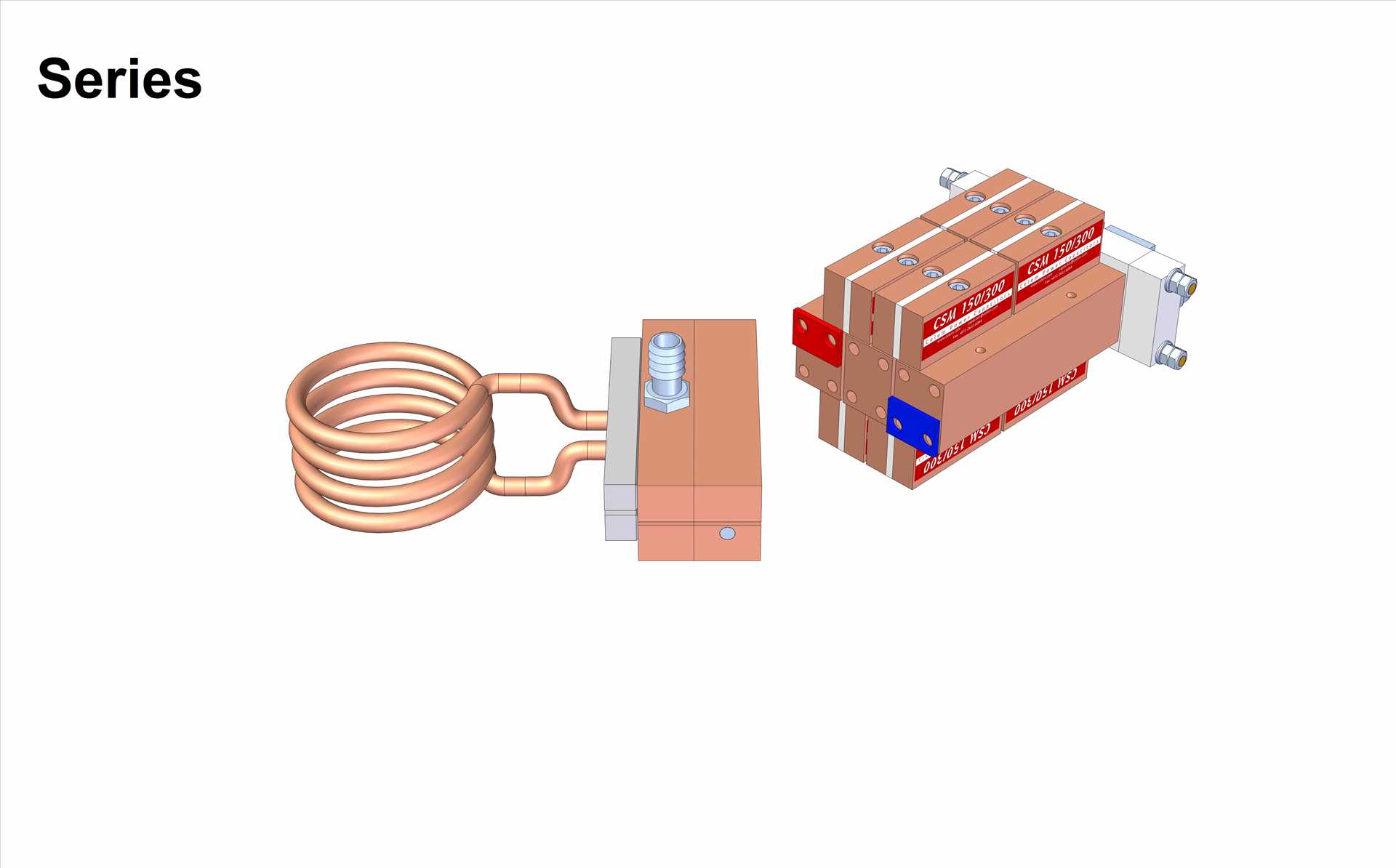

The AS 150/3 and AS 150/5 are versatile assembly systems that enable different combinations of series and parallel capacitors mounting, by adding or removing conducting spacers between the assembly and the connecting plates.
Please note that the nuts on the M8 studs holding the cable shoes of the external electrical connections, should be tightened with a torque not greater than 8Nm.
AS 150/3 is an assembly for up to 8 CSM 150 or CSM 150/200 or CSM 300 in parallel or in series or in series-parallel configuration
TYPE | AS150/3 | ||||||||||
Dimensions (LxWxH) | mm | 238 x 136 x 100 | |||||||||
Weight | kg | 7 | |||||||||
Capacitance (±10%) | μF | Up to 40 | |||||||||
Max. Voltage | Vrms | 1600 | |||||||||
Max. Current | Arms | 3200 | |||||||||
Max. Power | kVAr | 1200 |
