C500Q

C500Q has the same height as the C500T. Due to its different capacitance element, it provides higher voltages than the C500T.

C500Q is a 500kVAr rectangular capacitor, with the same height and footprint as the popular C500T.

The C500Q is manufactured using Celem’s patent pending technologies and has several advantages over the C500T.

Each of its electrodes has 5 mounting holes and larger surface area for current and heat flow ensuring better cooling.

The design of the C500Q enables devotion of more volume to the capacitor element and less to the electrodes.

This enables production of higher capacitance values at each selected voltage whilst keeping the size of the capacitor.

Before using the product please check the support section in our website "Guide to using celem capacitors".

Product Gallery
https://www.celem.com/Uploads/Conduction cooled capacitors/49_b_.jpg

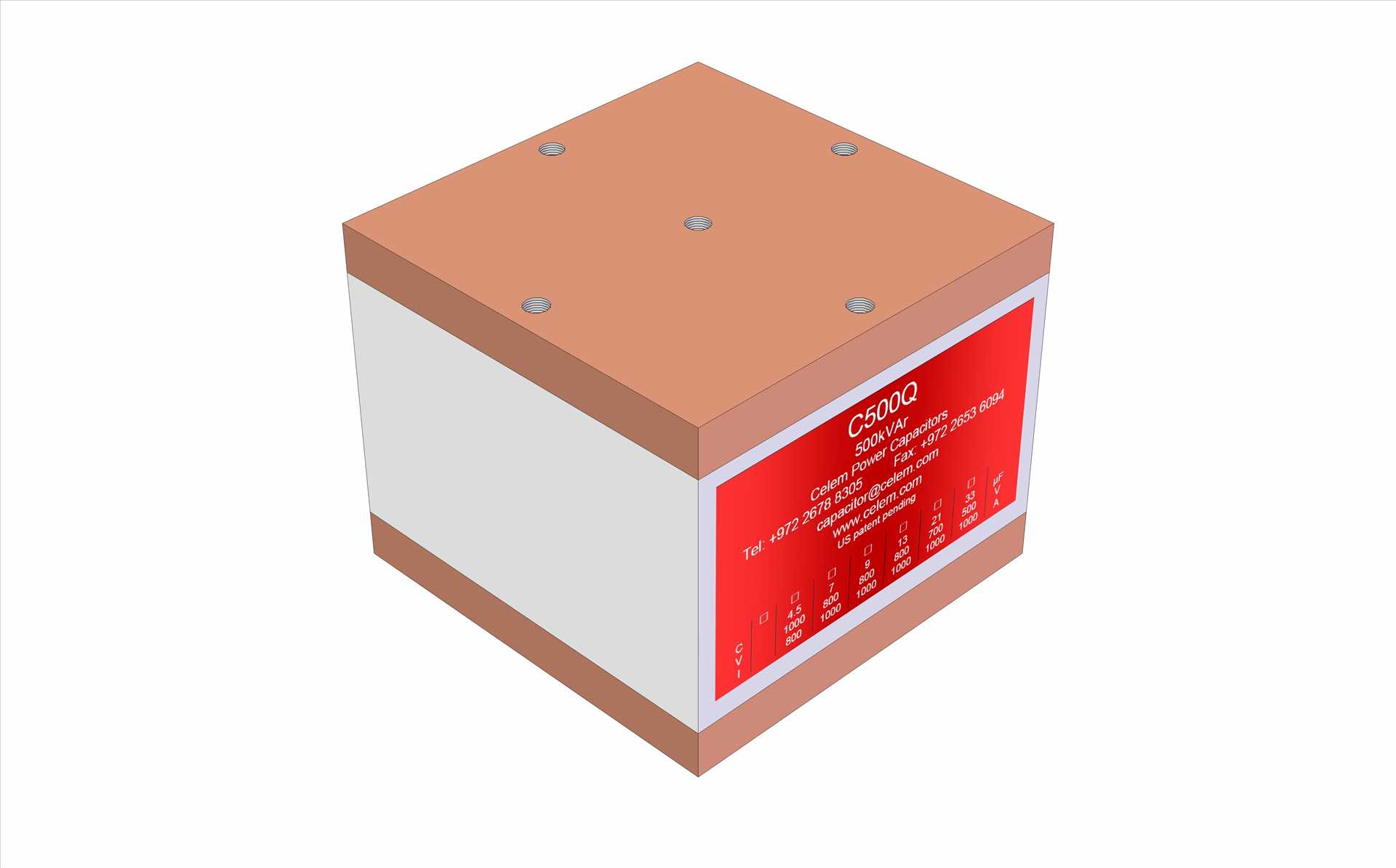

https://www.celem.com/Uploads/ראשי/c500q low resolution.jpg
Specifications
TYPE C500Q
Dimensions (LxWxH) mm 88 x 88 x 71.5
Weight kg 1.8
Capacitance (±10%) μF 4.5 7 9 13 21 33
Sinusoidal Voltage Vrms 1000 800 700 500
Peak Voltage Vpeak 1410 1130 990 710
Max. Current Arms 800 1000
Max. Power kVAr 500
Freq Range @ Half Power kHz 9-91 7-71 5-49 4-30 5-19
