C500TW

C500TW is a water-cooled on the C500T with similar dimensions and performance.

C500TW is a heavy-duty medium frequency water-cooled power capacitor, suited for the 10 - 70kHz frequency range.

It provides all the benefits of the C500T in addition to an integrated water-cooling system and the same large safety margins. The C500TW can replace the C500T and operates as a conduction-cooled capacitor.

C500TW is extremely compact, providing the best power to volume ratio in the industry.

Being a water-cooled capacitor, it is an ideal building block for very high power, medium frequency applications.

Please check in the Assembly Systems section options for parallel and series assemblies.

Standard applications: Induction heating, resonant circuits, medical imaging, heat treatment, plasma applications, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters, etc.
Features:
  • Polypropylene Water-cooled capacitor
  • High Power Self-Healing capacitor
  • Low ESR
  • Low losses
  • UL94-V0 available upon request.



The C500TW capacitor complies with RoHS.
The 4 water connecting tubes should be ordered separately.

Before using the product please check the support section in our website "Guide to using celem capacitors".

Product Gallery

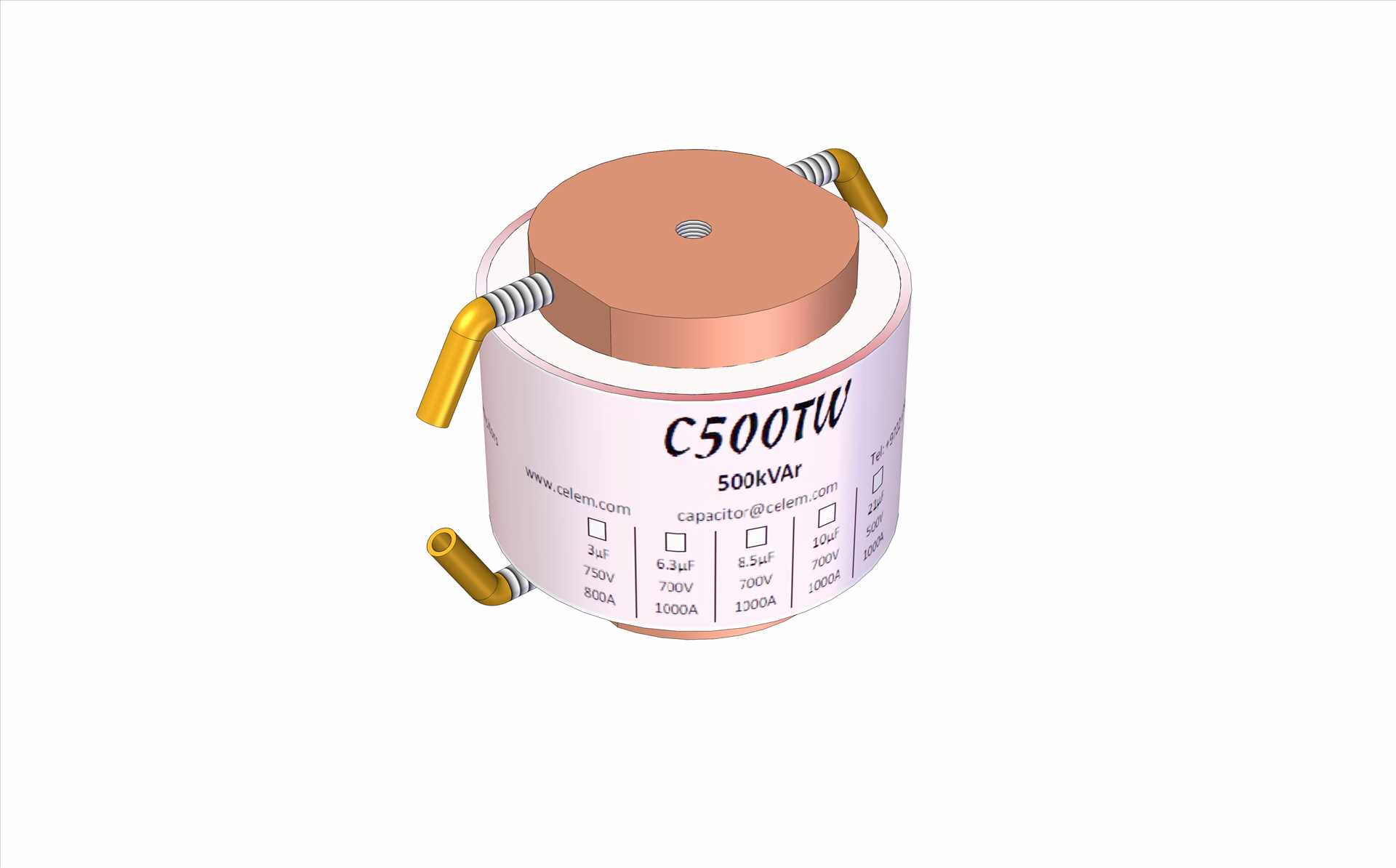

https://www.celem.com/Uploads/ראשי/c500tw low resolution.jpg
https://www.celem.com/Uploads/Water cooled capacitors/37_b_.jpg
Specifications
TYPE C500TW
Dimensions ( D ) mm Ø80 Ø101 Ø80 Ø88 Ø94 Ø80 Ø101
Weight kg 1.1 1.4 1.1 1.2 1.3 1.1 1.5
Capacitance (±10%) μF 1.4 3 4 6.3 8.5 10 21 27 37
Sinusoidal Voltage Vrms 1100 750 900 700 500 550 500
Peak Voltage Vpeak 1560 1060 1270 990 710 780 710
Max. Current Arms 600 800 700 1000
Max. Power kVAr 500
Freq Range @ Full Power kHz 47-82 47-68 25-39 26-51 19-37 16-32 15-15 10-12 9-9
Stray Inductance nH < 10
