C - CAP mini

C-Cap mini was developed for relatively low power applications like wireless charging

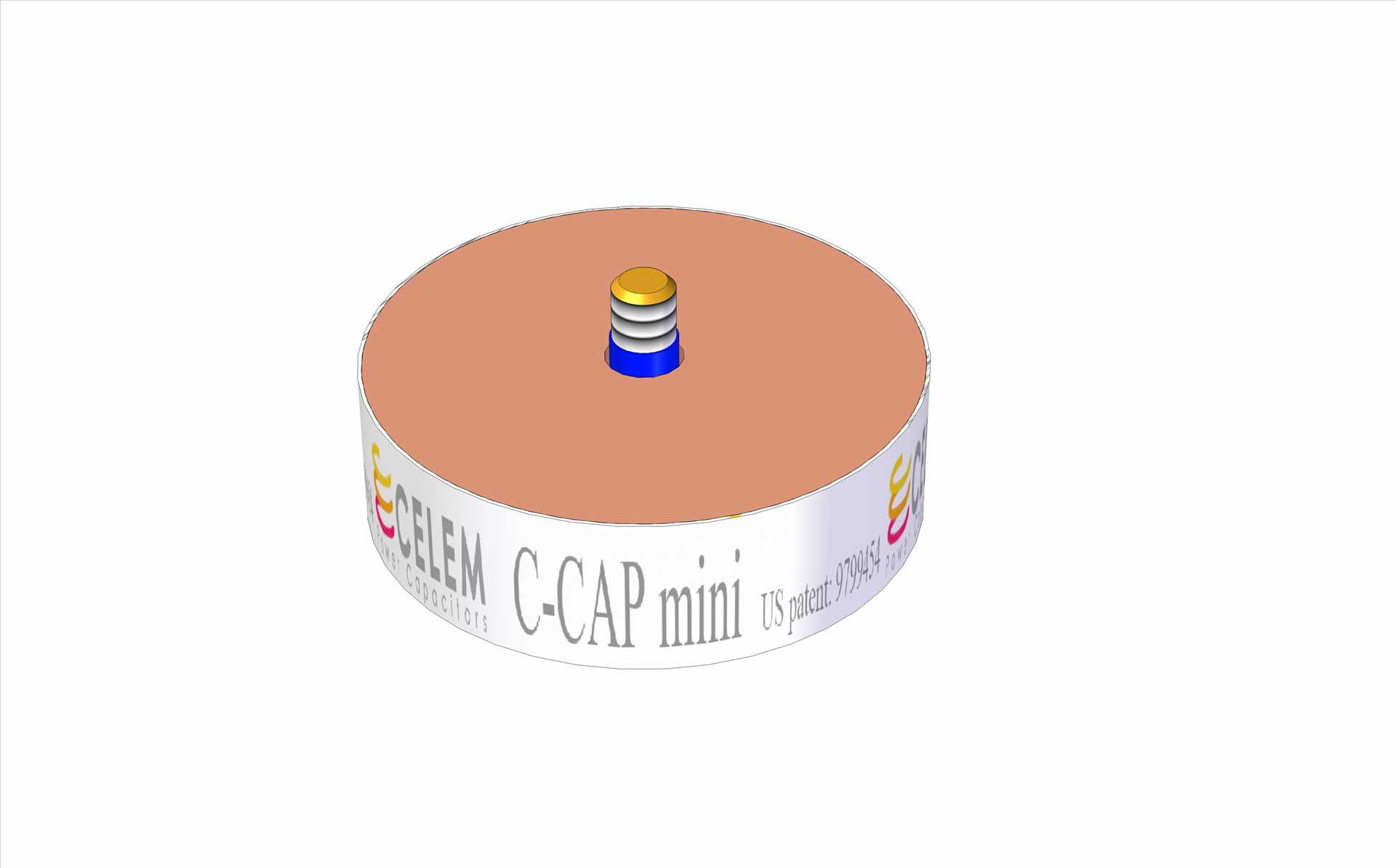

C-Cap mini is a low profile power capacitor. It was developed based on the new innovative coaxial technology (US Patent 9799454) by Celem. It comes in 2 versions, a standard, polypropylene, version and a PPS version for environment up to 125° C.

The C-Cap mini can be customized electrically and mechanically.   Different capacitances and voltages available upon request.

C-Cap mini can be mounted from one side of 2 bus-bar system, like the water-cooled C-Cap capacitors.

In addition, due to its relative low power, the C-Cap mini can be mounted on a PCB.

Tightening torque of C-Cap mini is 1 Nm.

Note:  Regardless of the cooling method, at full power, capacitor temperature should not raise above 55C during operation.

Product Gallery
https://www.celem.com/Uploads/ראשי/c-cap mini for ds.jpg
https://www.celem.com/Uploads/ראשי/c-cap mini low resulotion.jpg
