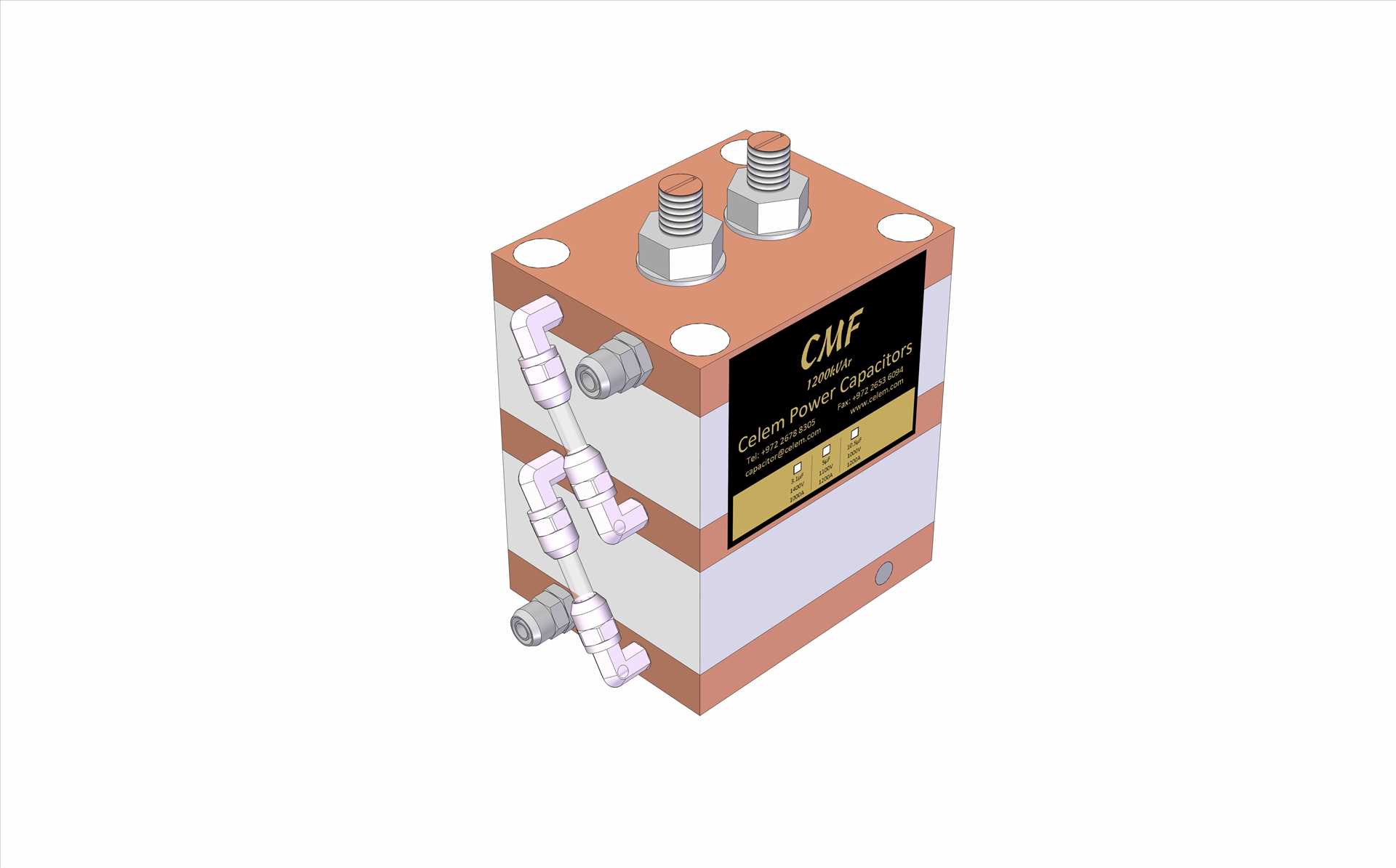

Water-cooled CMF has a patented structure that enables internal serial connection of 2 elements, hence doubling the voltage of the capacitor.
CMF is a patented water-cooled capacitor that contains two capacitance elements. This structure provides higher voltage and higher power than standard capacitors in a more compact design.
Standard applications: Induction heating, resonant circuits, medical imaging, heat treatment, high frequency inverters, plasma applications, wireless power transfer, etc.
- Polypropylene Water-cooled capacitor
- High Power Self-Healing capacitor
- Low ESR
- Low losses
- UL94-V0 available upon request.
Before using the product please check the support section in our website "Guide to using celem capacitors".

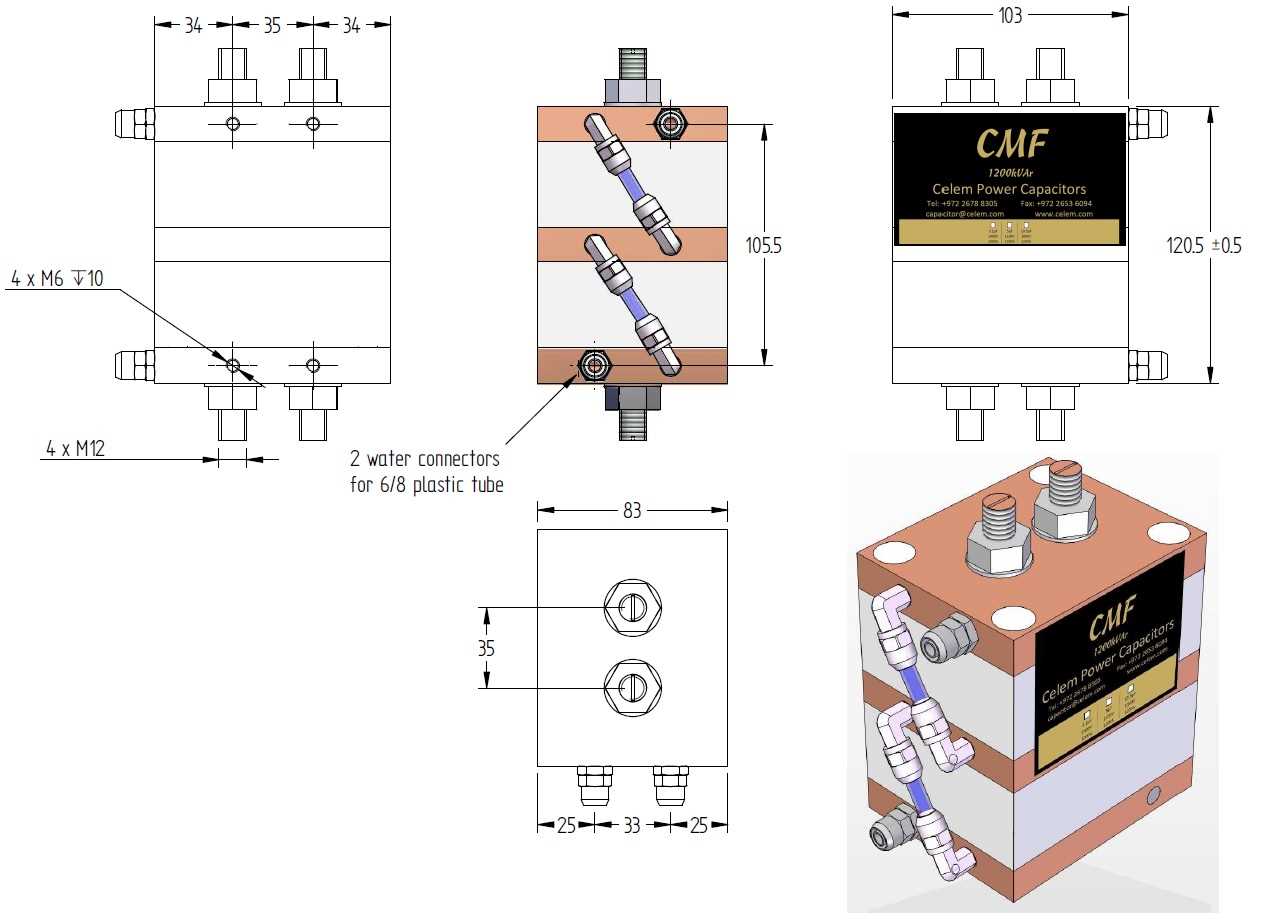

|Dimensions (LxWxH)||mm||121 x 103 x 83|
|Freq Range @ Full Power||kHz||54-60||31-43||32-38||18-18|
|Stray Inductance||nH||< 3
