CPRI 200
CPRI 200 is a 250kVAr Mica capacitor for up to 100MHz and 150 degrees C.
The CPRI 200 mica conduction-cooled capacitor provides 250kVAr at ultra-high frequencies (up to 100MHz) and high ambient temperatures (up to 150°C).
The CPRI 200 can be manufactured to order with the capacitance of the customer’s choice. The values in the attached table are typical of the range of available values.
Standard applications: Medical equipment, EV (electric vehicle) charging, IPT, high frequency inverters, Induction Heating, Heat Treatment, Wireless Power Transfer, etc.
Features:
- Ultra-high frequency Conduction-cooled capacitor
- Low ESR
- Low losses
Before using the product please check the support section in our website "Guide to using celem capacitors".

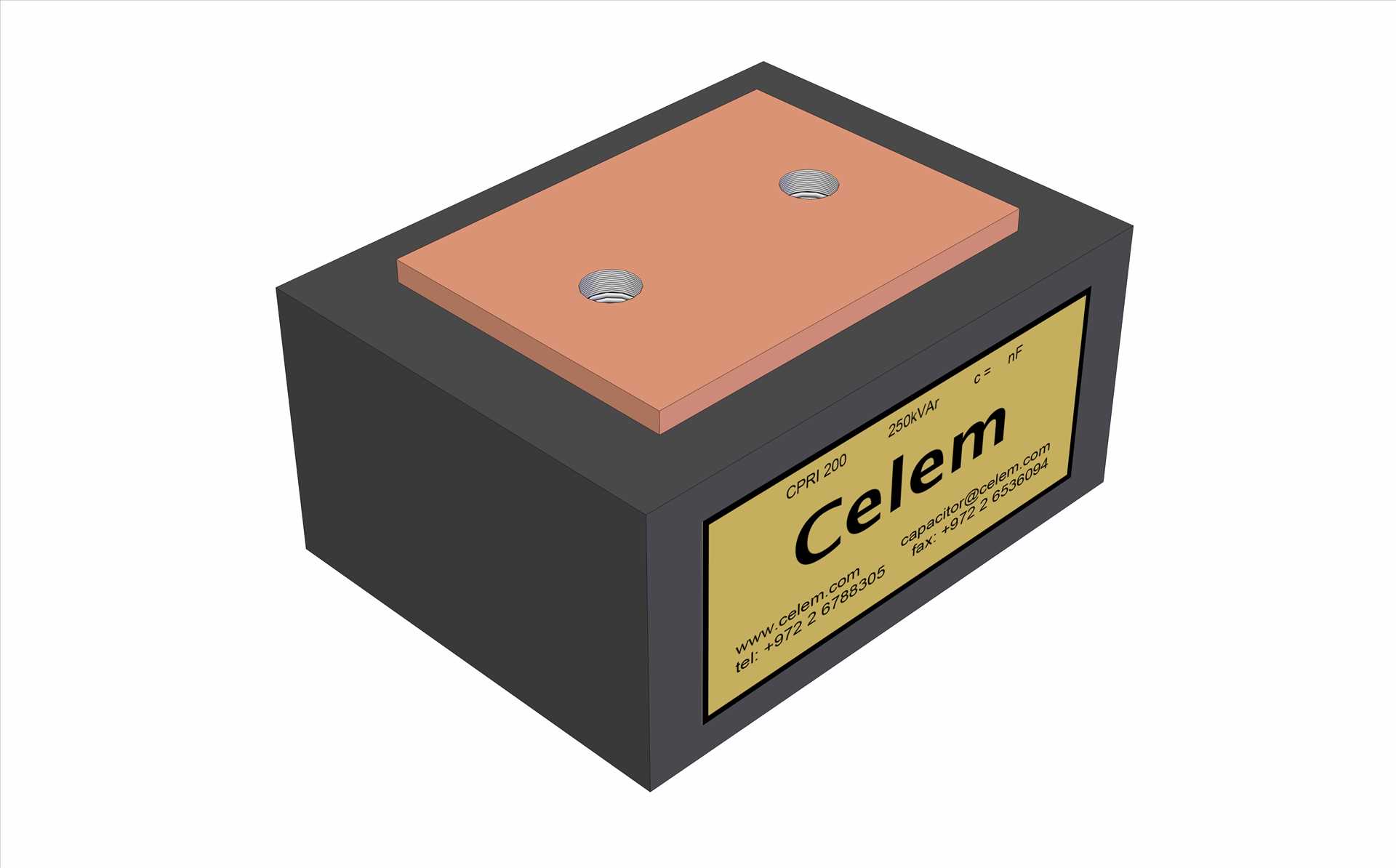

Product Gallery
Specifications
| TYPE | CPRI 200 | ||||||||||

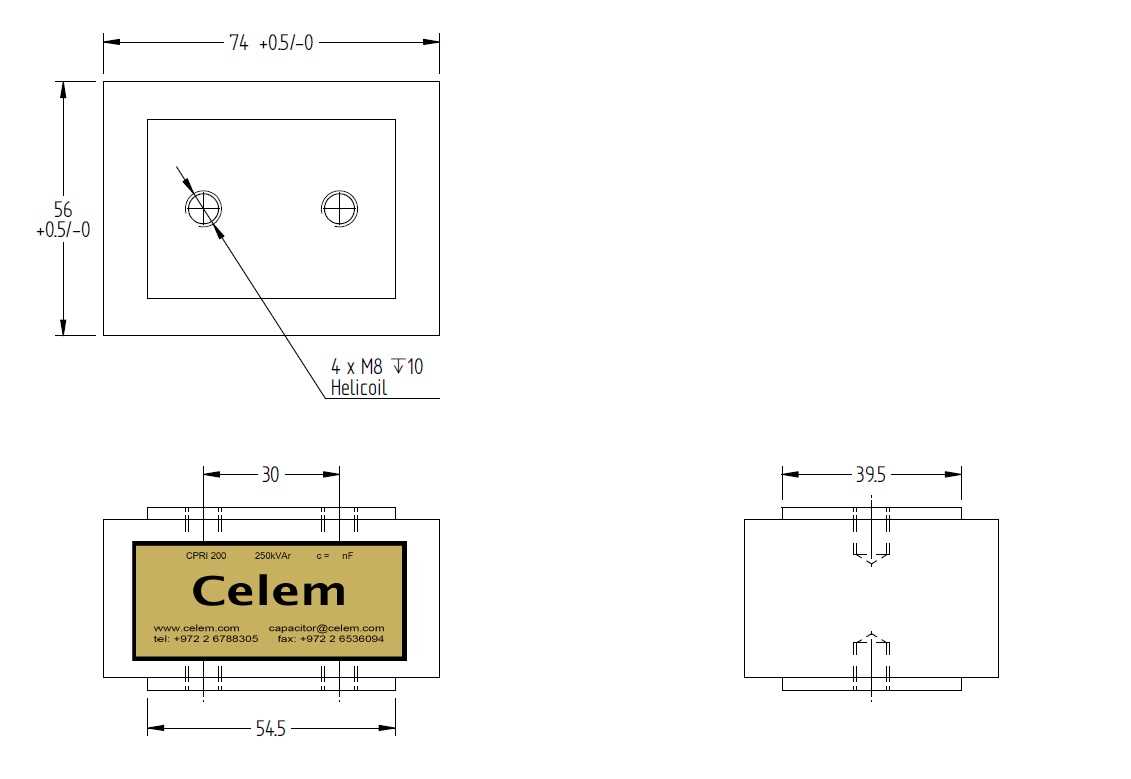

| Dimensions (LxWxH) | mm | 74 x 56 x (34 to 43) | |||||||||
| Weight | kg | 0.65 to 0.85 | |||||||||
| Capacitance (±10%) | μF | 0.05 | 0.1 | 0.2 | 0.25 | ||||||
| Sinusoidal Voltage | Vrms | 900 | |||||||||
| Peak Voltage | Vpeak | 1270 | |||||||||
| Max. Current | Arms | 350 | |||||||||
| Max. Power | kVAr | 250 |
|||||||||
