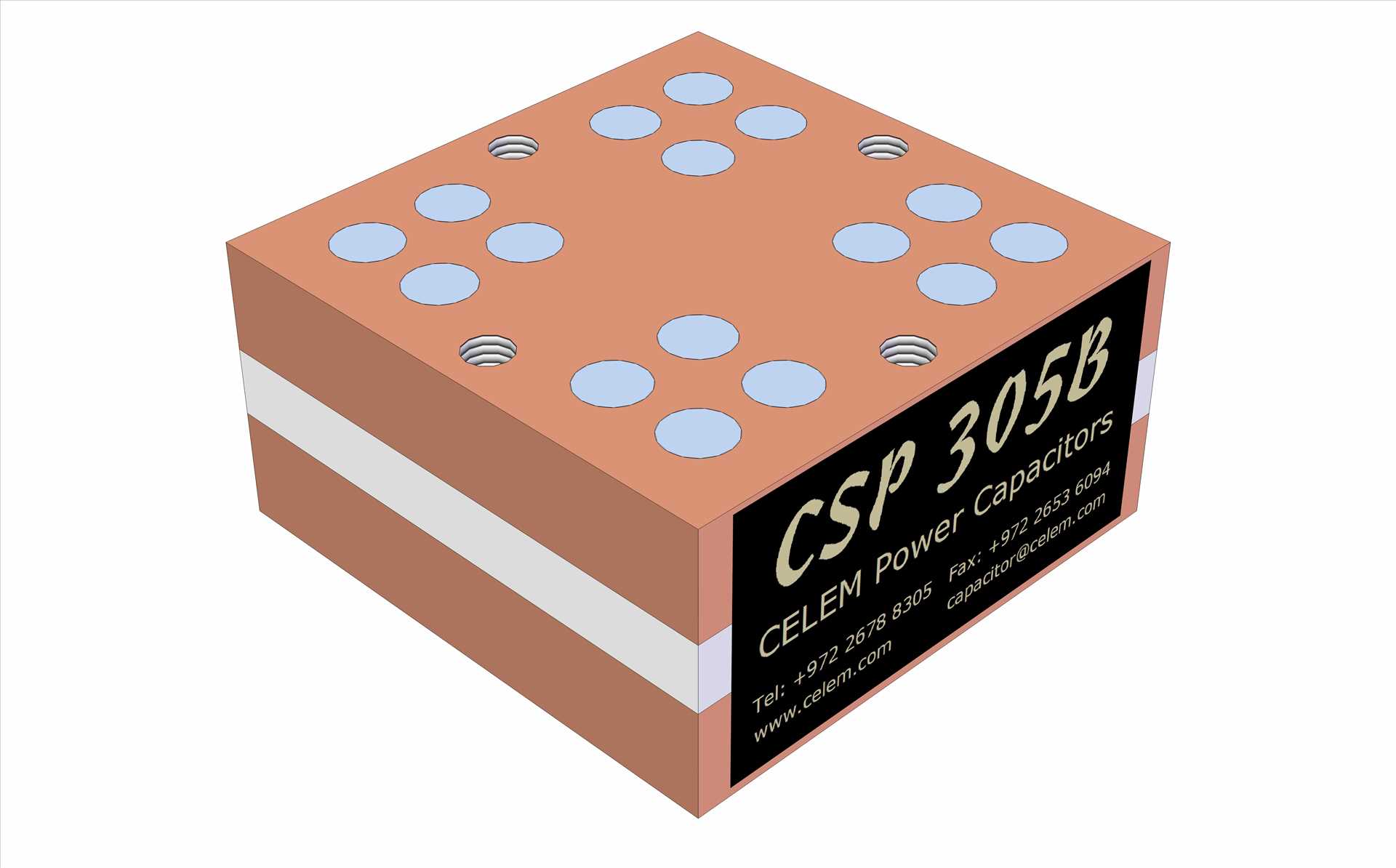

The 300kVAr CSP 305B used to be the preferred building block in many assemblies. Today the CSP 405B and CSP 305B/600 replace it successfully.
The CSP 305A and CSP 305B conduction-cooled capacitors provide up to 300 kVAr of power.
These capacitors have similar electrical characteristic but differ in their physical dimensions and in the number of mounting holes.
Please note that the newer CSP 405B and CSP 305B/600 have the same physical dimensions as the CSP 305B but are rated for higher voltage and higher current and can carry up to 400 and 600kVAr respectively.
Standard applications: Induction heating, resonant circuits, medical imaging, heat treatment, EV (electric vehicle) charging, IPT, high frequency inverters, plasma applications, wireless power transfer, etc.
- Polypropylene Conduction-cooled capacitor
- High Power Self-Healing capacitor
- Low ESR
- Low losses
- UL94-V0 available upon request.
The CSP 305B capacitor complies with RoHS.
Before using the product please check the support section in our website "Guide to using celem capacitors".
|Dimensions (LxWxH)||mm||60 x 60 x 30.2|
|Freq Range @ Full Power||kHz||477-849||239-424||295-402||148-201||133-224||100-170||73-86||60-68|
|Stray Inductance||nH||< 5
