Q - CAP 04 C

Q-Cap 04 C has a footprint of 100x100mm. This Q-Cap can drive up to 2250A and is great for low to medium frequency applications.



Q-CAP is a new coaxial conduction cooled capacitor, based on the design of the well-known C-CAP capacitor.
Q-CAP offers significant cost savings on both capacitor and bus-bar, without compromising performance.
Q-CAP merges the efficiency of conduction cooling with the performance of coaxial capacitor design.

Cooling of the Q-CAP is achieved by pressing a bent copper pipe (OD/ID 8/6 mm, radius 50 mm) into a built-in groove on each of the Q-CAP electrodes.
Q-CAP Cost per kVAr ratio is the lowest among all of Celem's product.

3D file (STP) is available upon request

Q-CAP / V-CAP mounting recommendations

Product Gallery

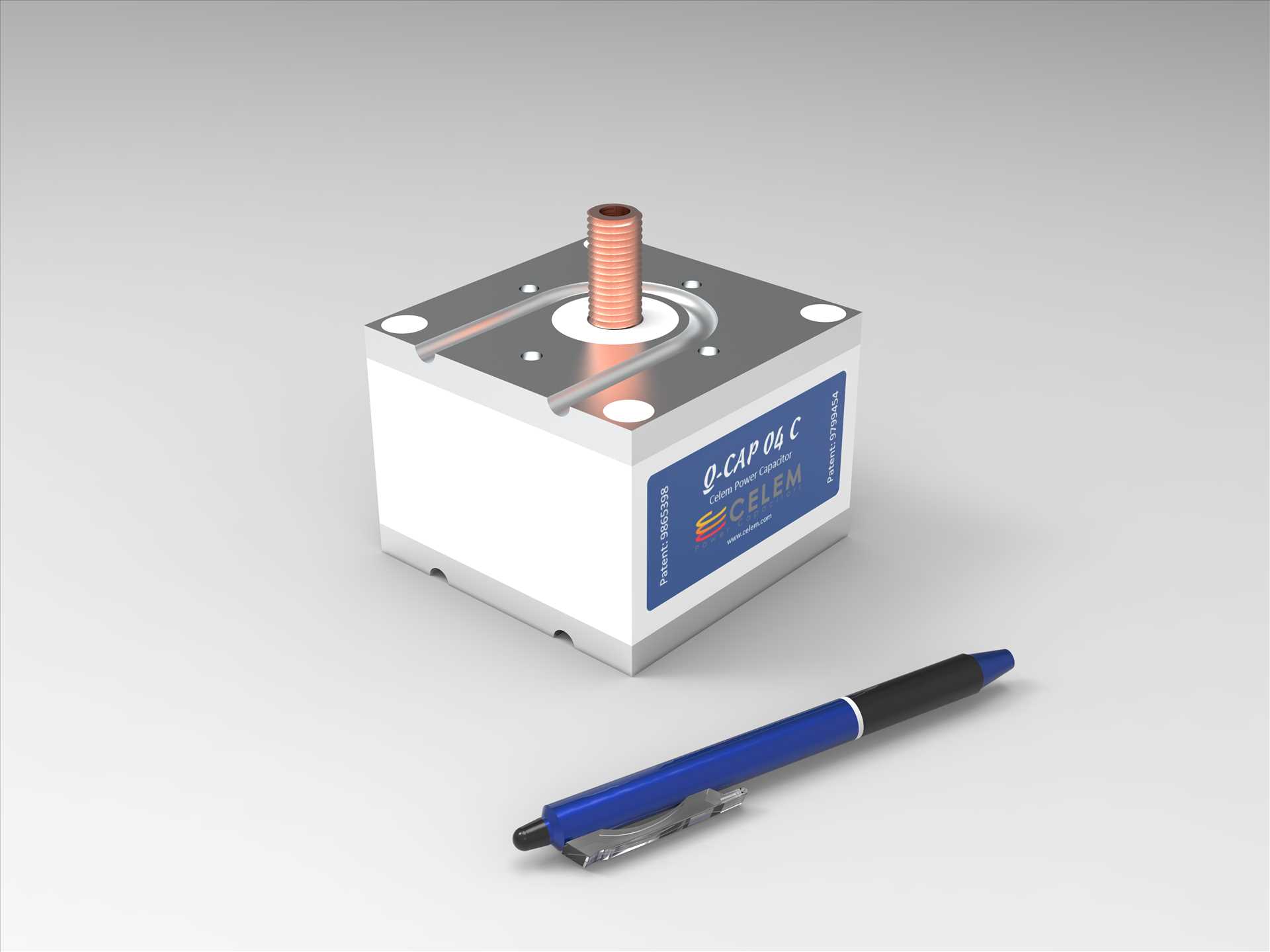

https://www.celem.com/Uploads/ראשי/q-cap04c with pen.3Kp61.jpg
https://www.celem.com/Uploads/ראשי/q-cap 04 c picture for ds.jpg
Specifications



TYPE                                                           Q - CAP 04 C
Dimensions (LxWxH)                            mm 100 x 100 x 74
Weight kg 1.2
Capacitance (±10%) μF 3.3 5.8 8 12 17 28 50
Sinusoidal Voltage Vrms 900 800 750 700 650 550 450
Peak Voltage Vpeak 1273 1131 1061 990 919 778 636
Max. Current Arms 1150 1250 1350 1450 1550 1850 2250
Max. Power kVAr 1000
Freq Range @ Full Power kHz 60-64 43-43 35-36 27-28 22-23 19-19 15-15
