Q - CAP 04 D

Q-Cap 04 D has a footprint of 100x100mm. This Q-Cap can drive up to 2000A and is great for low to medium frequency applications.

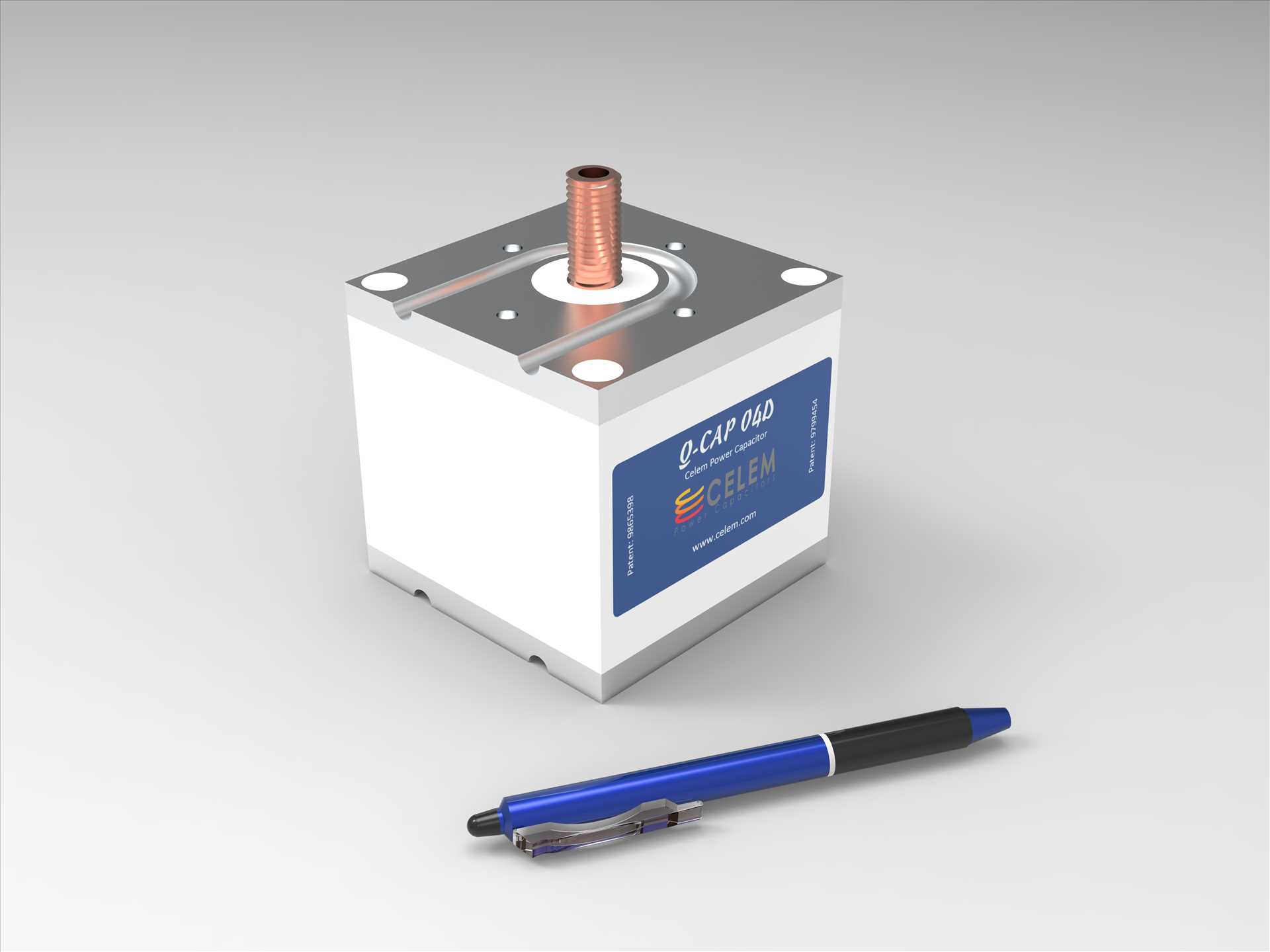

Q-CAP is a new conduction cooled capacitor, based on the design of the well-known C-CAP capacitor.
Q-CAP offers significant cost savings on both capacitor and bus-bar, without compromising performance.
Q-CAP merges the efficiency of conduction cooling with the performance of coaxial capacitor design.

Cooling of the Q-CAP is achieved by pressing a bent copper pipe (OD/ID 8/6 mm, radius 50 mm) into a built-in groove on each of the Q-CAP electrodes.
Q-CAP Cost per kVAr ratio is the lowest among all of Celem's product.

3D file (STP) is available upon request

Q-CAP / V-CAP mounting recommendations

Product Gallery
https://www.celem.com/Uploads/ראשי/q-cap 04 d.4.jpg
https://www.celem.com/Uploads/ראשי/q-cap 04 d for ds.jpg
Specifications



TYPE                                                      Q - CAP 04 D 900
Dimensions (LxWxH)                         mm                                                             100 x 100 x 96.5
Weight                                                 kg 1.5
Capacitance (±10%)                           μF 8 17 25 40 72
Sinusoidal Voltage                             Vrms 900 700 650 550 450
Peak Voltage                                       Vpeak 1273 990 919 778 636
Max. Current                                      Arms 1000 1300 1400 1650 2000
Max. Power                                         kVAr 900
Freq Range @ Full Power                  kHz 22-22 17-18 13-13 11-12 10-10
