V - CAP 07

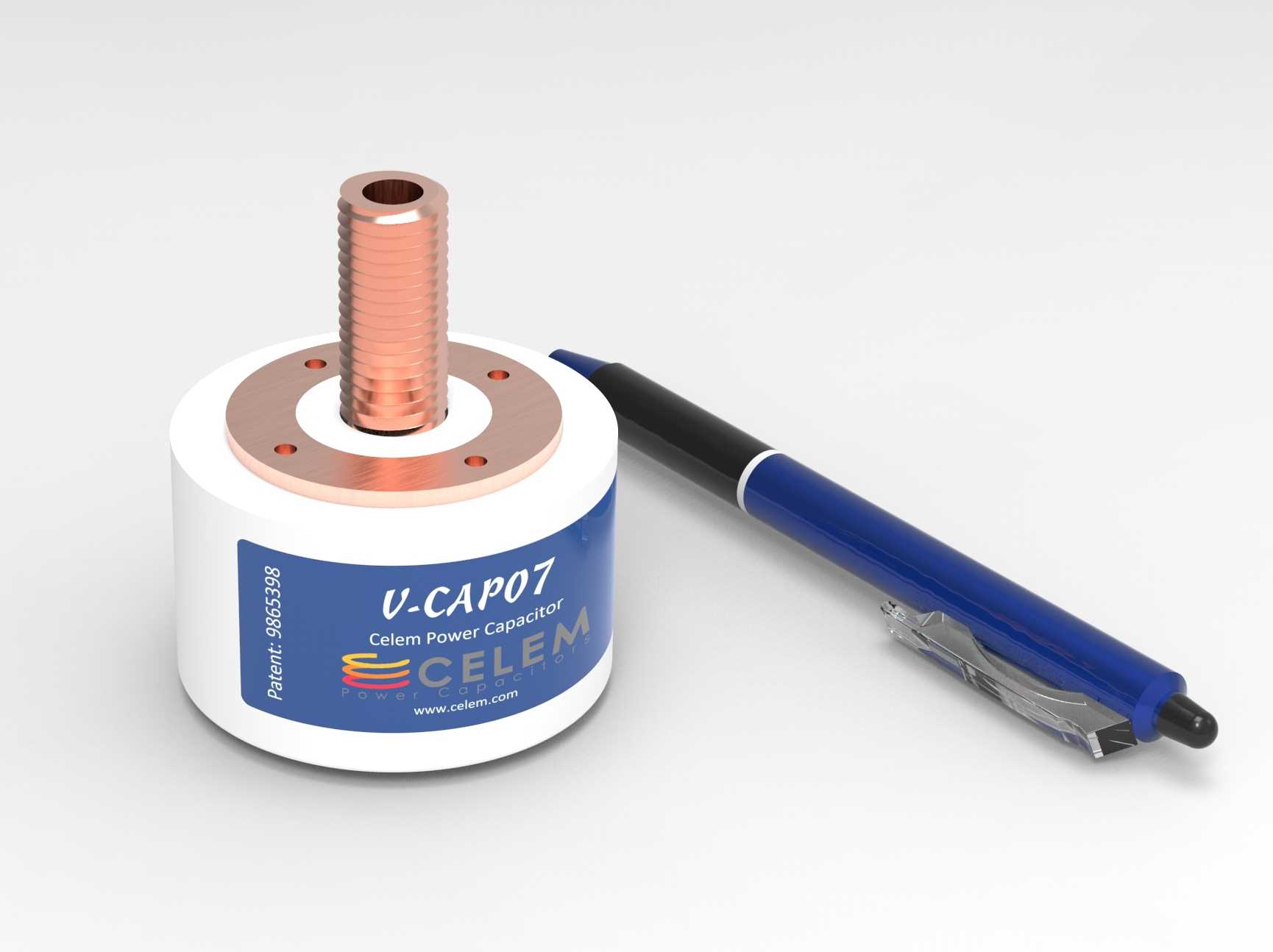

V-Cap 07 has a diameter of 64 mm . This V-Cap can drive up to 850A and is great for high to medium frequency applications.
The V-CAP 07 was designed to enable fine tuning of large V-CAPת Q-CAP or C-CAP systems and can also be used in systems which require smaller power.
V-CAP is a new coaxial conduction cooled capacitor, based on the design of the well-known C-CAP capacitor.
V-CAP offers significant cost savings on both capacitor and bus-bar.
V-CAP merges the efficiency of conduction cooling with the performance of coaxial capacitor design.
V-CAP 07 comes in many different capacitances to enable precise tweaking of capacitance and can be customized to any other value as well.
3D file (STP) is available upon request
Product Gallery
Specifications
| TYPE | V-CAP 07 400 | |||||||||||||||
| Dimensions (LxWxH) | mm | Ø64 x 43.5 | ||||||||||||||
| Weight | kg | 0.5 | ||||||||||||||
| Capacitance (±10%) | μF | 0.1 | 0.2 | 0.33 | 0.4 | 0.66 | 1 | 1.33 | 2 | 3 | 5 | 6 | ||||
| Sinusoidal Voltage | Vrms | 900 | 800 | 750 | 700 | 650 | 550 | 500 | ||||||||
| Peak Voltage | Vpeak | 1273 | 1131 | 1061 | 990 | 919 | 778 | 707 | ||||||||
| Max. Current | Arms | 300 | 450 | 500 | 550 | 600 | 650 | 750 | 800 | 850 | ||||||
| Max. Power | kVAr | 250 | 400 | |||||||||||||
| Freq Range @ Full Power | kHz | 491-543 | 246-287 | 238-244 | 197-202 | 151 | 113-120 | 98-108 | 75-84 | 70-75 | 51 | 42-48 | ||||
