CSM 800

CSM 800 Is a unique water-cooled capacitor because it can be mounted in CSP or CSM mode.

CSM 800 is a new development by Celem, targeting high frequency, high power applications. The new CSM 800 is a water-cooled capacitor allowing 800kVAr in a very small design.

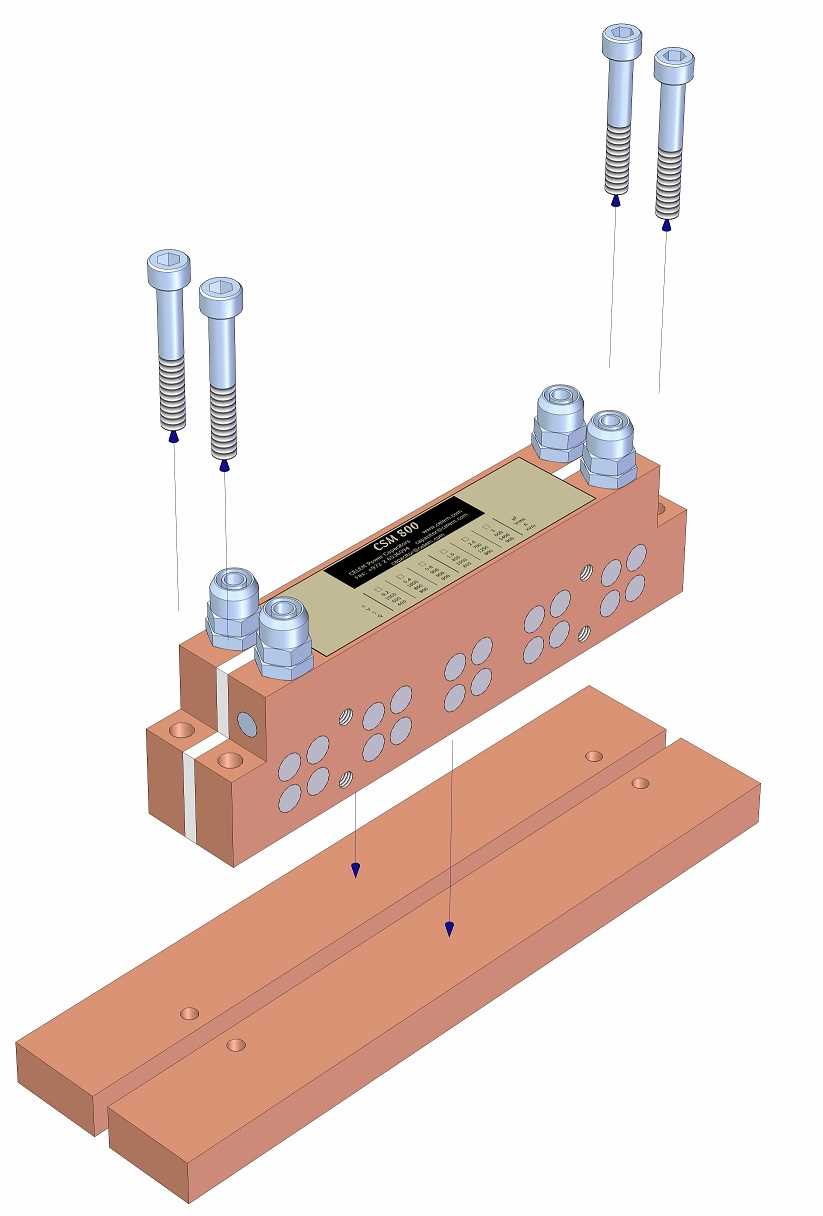

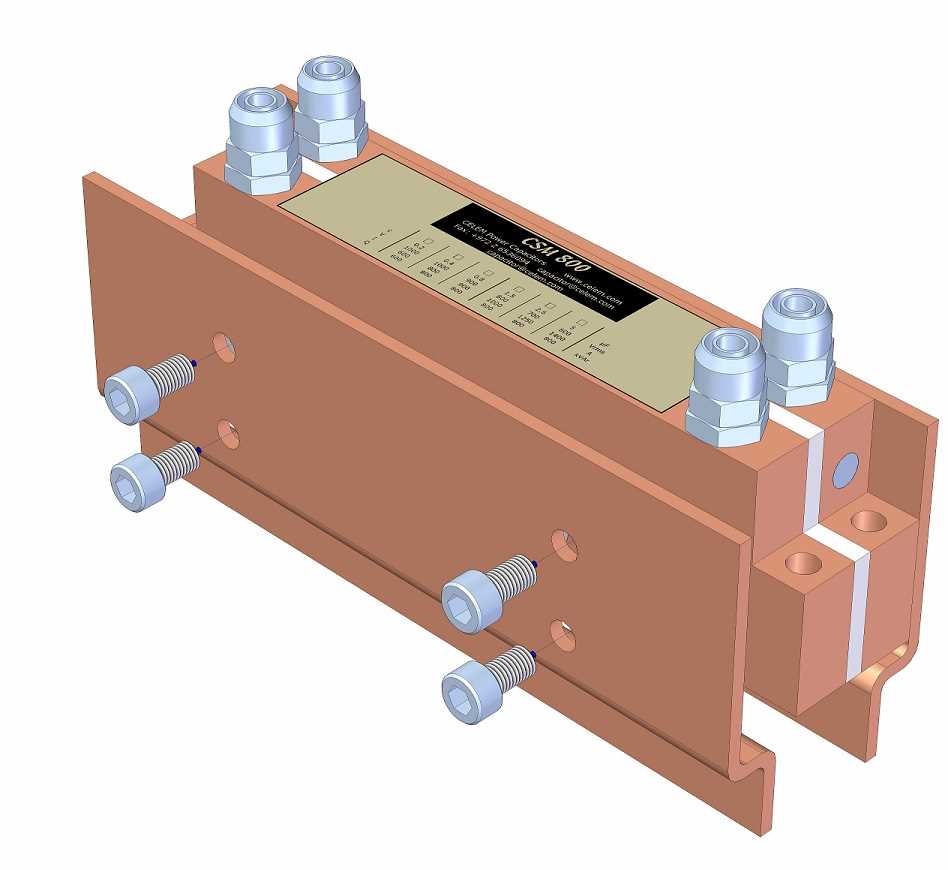

This unique capacitor can be mounted either on top of two adjacent parallel bus bars using the 4 through holes in the capacitor (similar to the well-known CSM capacitor series),  or between two parallel bus bars plates (similar to our CSP series).
For mounting instructions please refer to: instructions


Before using the product please check the support section in our website "Guide to using celem capacitors".



Product Gallery

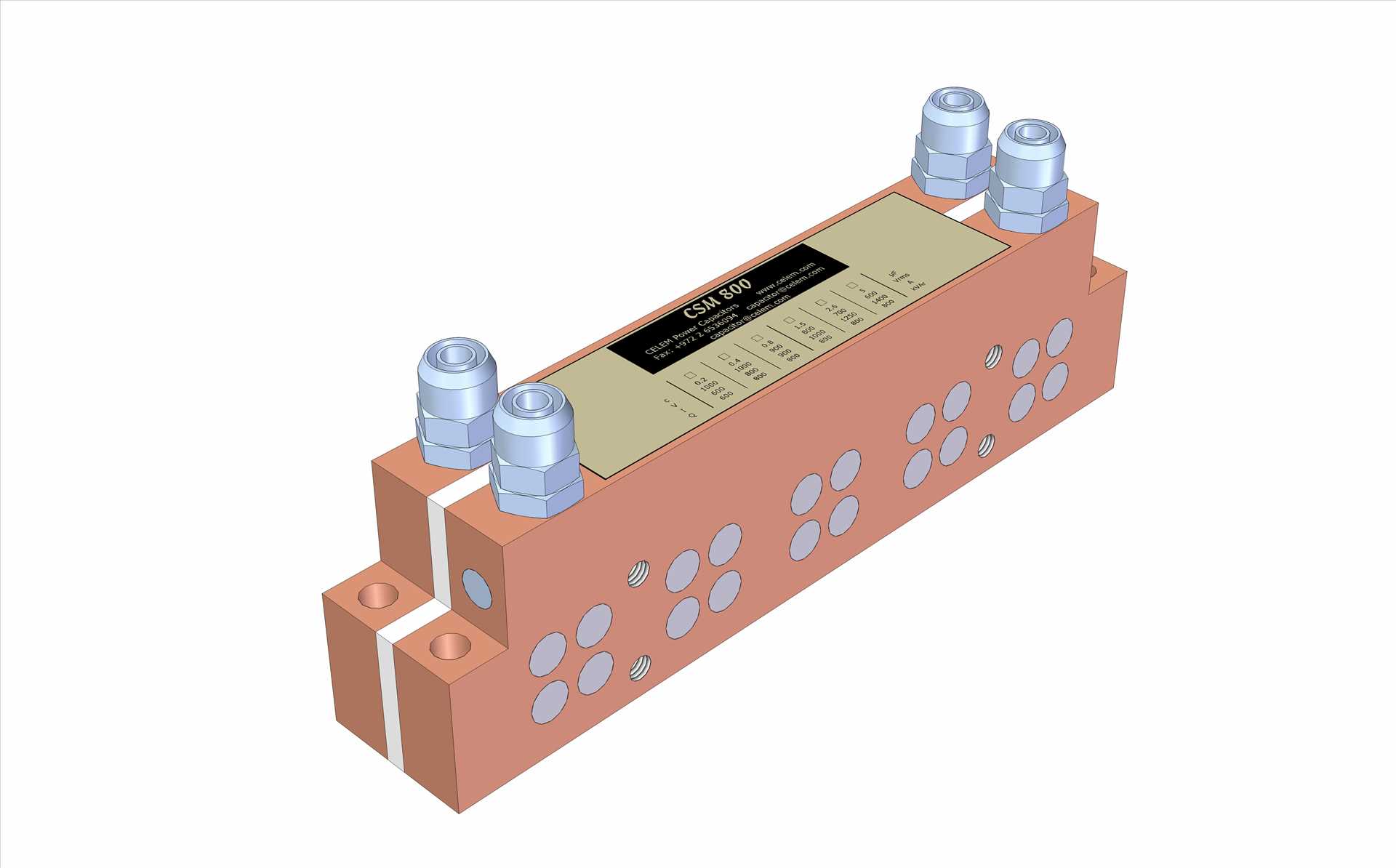

https://www.celem.com/Uploads/ראשי/csm800 low resolution.jpg
https://www.celem.com/Uploads/Water cooled capacitors/47_b_.jpg
Specifications
TYPE CSM 800

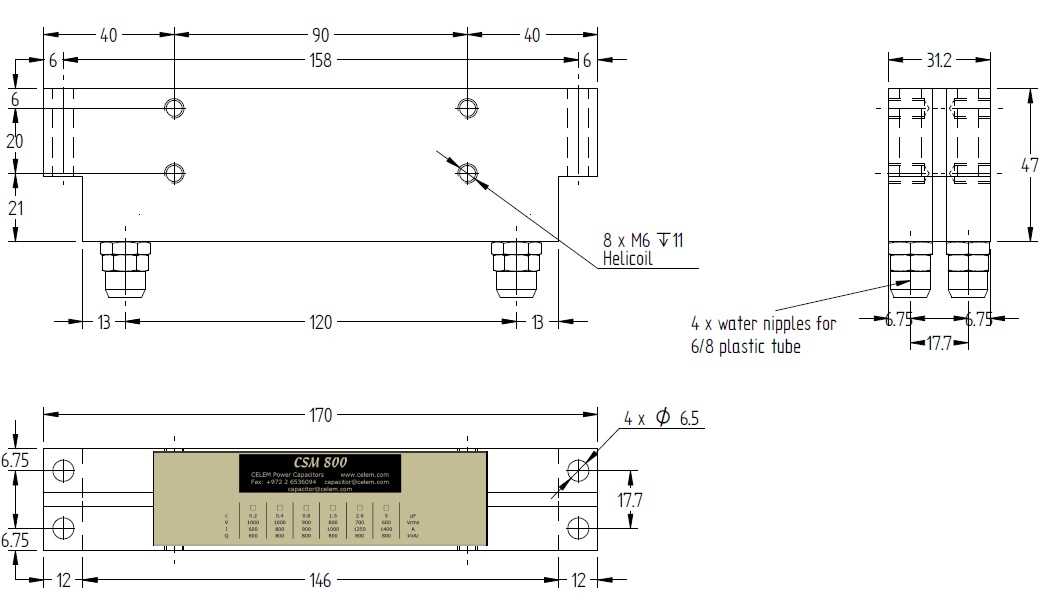

Dimensions (LxWxH) mm 170 x 47 x 31.2
Weight kg 1.2
Capacitance (±10%) μF 0.2 0.4 0.8 1.5 2.6 3.5 5
Sinusoidal Voltage Vrms 1000 900 800 700 650 600
Peak Voltage Vpeak 1410 1270 1130 990 919 850
Max. Current Arms 600 800 900 1000 1250 1300 1400
Max. Power kVAr 600 800
Freq Range @ Full Power kHz 239-955 159-637 98-403 66-265 50-239 43-192 35-156
